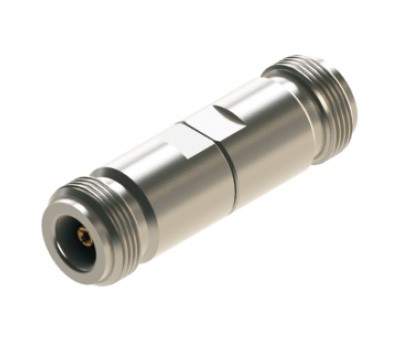

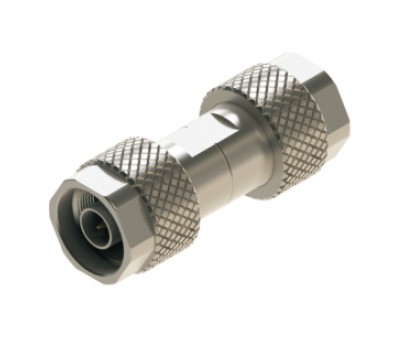

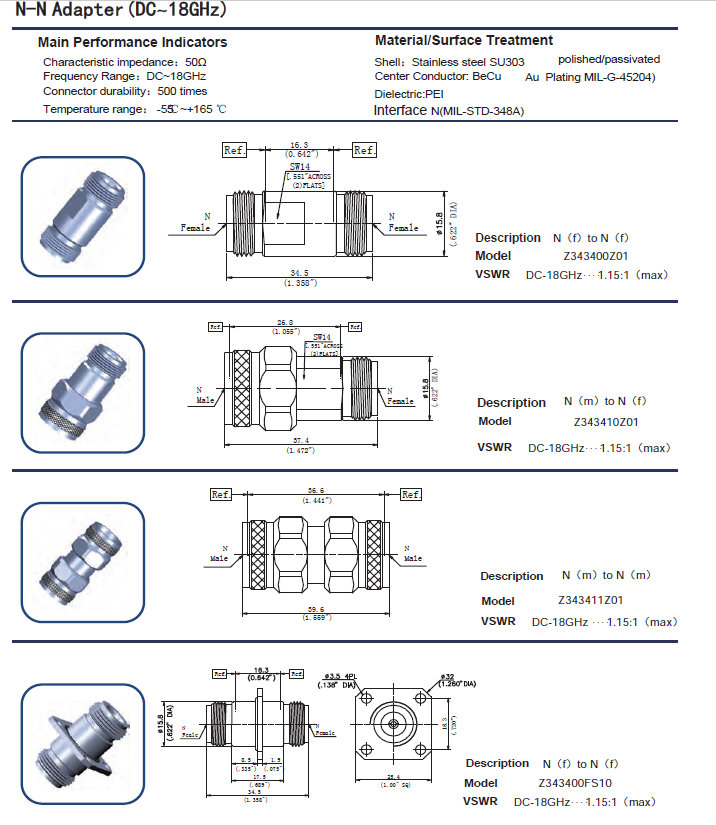

N-N Adapter(DC~18GHz)

Characteristic impedance：50Ω         Shell：Stainless steel SU303
Frequency Range：DC~18GHz          polished/passivated
Connector durability：500 times         Center Conductor: BeCu
Temperature rang：e -55℃5 ~+16 ℃ Au Plating（ MIL-G-45204)
     Interface N(MIL-STD-348A)            Dielectric:PEI
