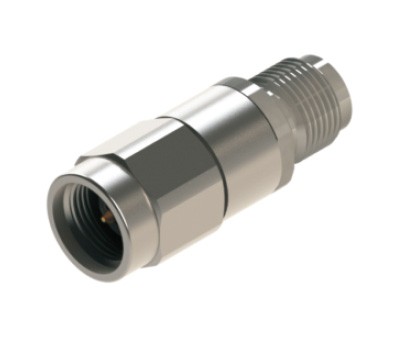

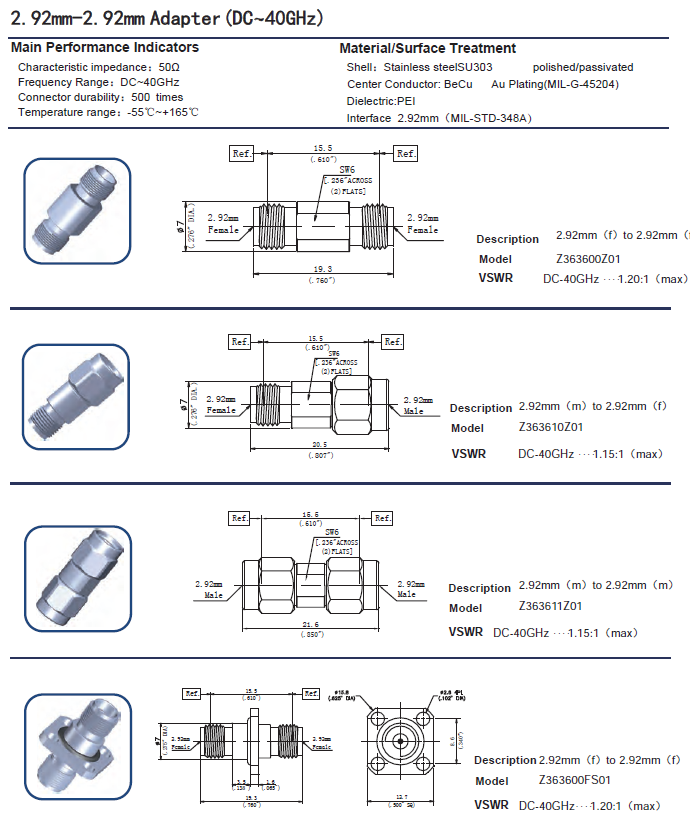

2.92mm-2.92mm Adapter(DC~40GHz)

Characteristic impedance：50Ω       Shell：Stainless steelSU303
Frequency Range：DC~40GHz        polished/passivated
Connector durability：500 times       Center Conductor: BeCu
Temperature range:：-55℃~+165℃ Dielectric:PEI&PTFE
   Interface 2.92mm(MIL-STD-348A)       Au Plating (MIL-G-45204)
