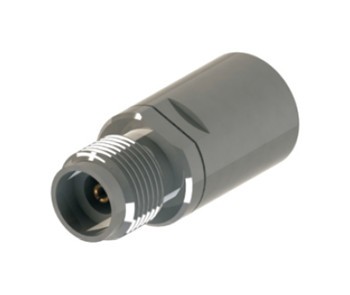

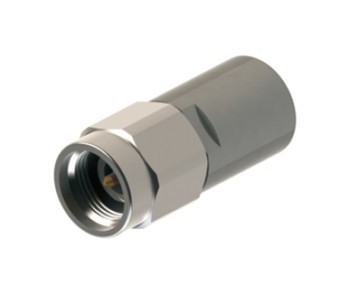

2.92mm RF Coaxial Termination

Characteristic impedance：50Ω        Shell：Stainless steelSU303 polished/passivated
Temperature range：-55℃~+125℃   Center Conductor: BeCu     Au Plating
Connector durability：500 times          Interface N/SMA/2.92mm/SSMA：(MIL-STD-348A )
                                                            3.5mm (IEC 60169) 2.4mm (IEC 61169)
