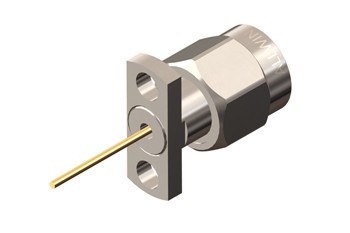

1.85mm Connector Series

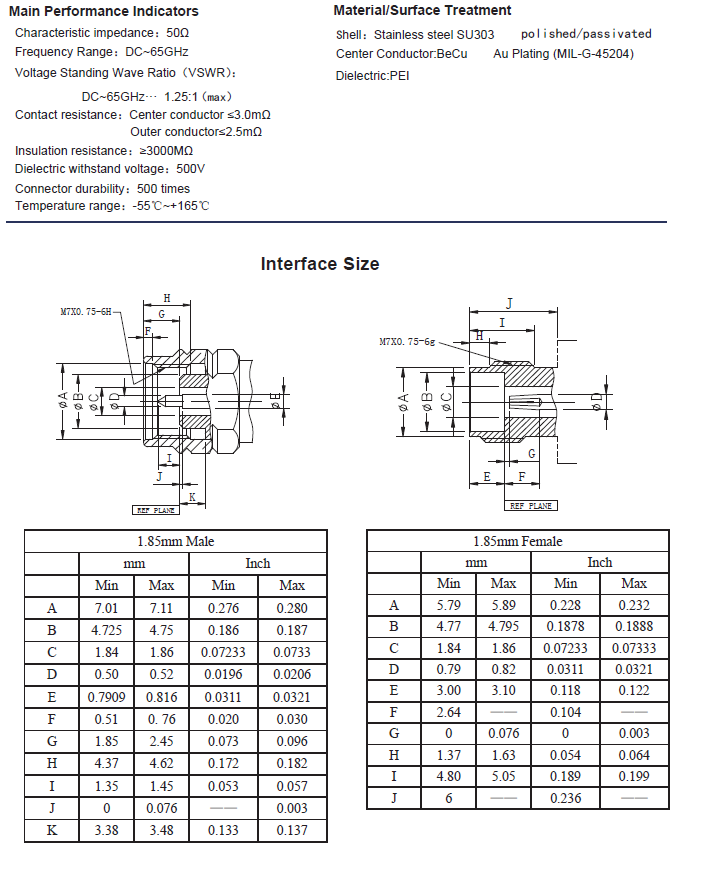

Main Performance Indicators                      Material/Surface Treatment
Characteristic impedance：50Ω                Shell：Stainless steelSU303
Frequency Range：DC~65GHz                 Center Conductor: BeCu
Voltage Standing Wave Ratio（VSWR）   Au Plating(MIL-G-45204)
     DC~18GHz····      1.10:1（max）          Insulator:PTFE&PEI
     18GHz~27GHz···· 1.15:1（max）          polished/passivated
Contact resistance： Center conductor≤3.0mΩ
